Uervoton HDMI 2.0 Switch

【PLUG & PLAY】This HDMI 2.0 switch is easy to setup and operate. No external power supply needed, just connect your HDMI devices to enjoy! Simply press the button to swap signal within 1 second, and the LED light tells you which port is active
【4K RESOLUTION】Support 3D, 1080P, 4K x 2K resolution and HD audio, with this HDMI switch you can enjoy the most luxurious video and audio. ( Please use a standard HDMI 2.0 cables to connect your Xbox one or PS4 pro.)

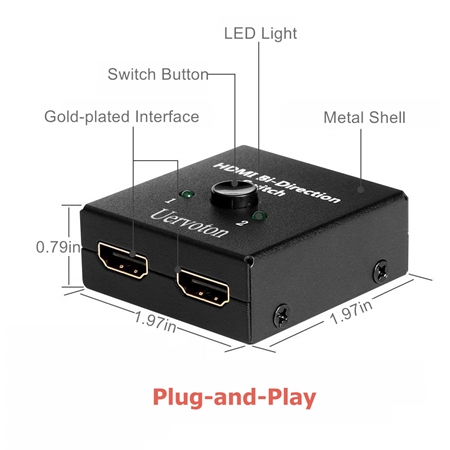

【QUALITY BUILD】Solid aluminum alloy construction, HDMI bi-directional switch helps you connect 2 HDMI sources to 1 HDMI display, or connect 1 HDMI source to toggle between 2 displays (2 screens CANNOT display simultaneously)
【FAST & STABLE TRANSMITTION】HDMI 2.0 Switch box provides high bandwidth 18Gbps data transmission, input and output AWG26 HDMI standard cable length could reach up to 16ft. No lag, no loss of picture or sound quality
【WIDELY COMPATIBILITY】Works great with most devices with standard HDMI interface, such as Nintendo Switch, PCs, laptops, gaming consoles, XBox 360, Xbox One, PS3, PS4, projectors, TV receivers, Monitors and more. Compatible with HDMI specification 2.0 (or previous HDMI V2.0, V1.4, V1.3, V1.2, V1,1, V1.0)
Description

Note Please

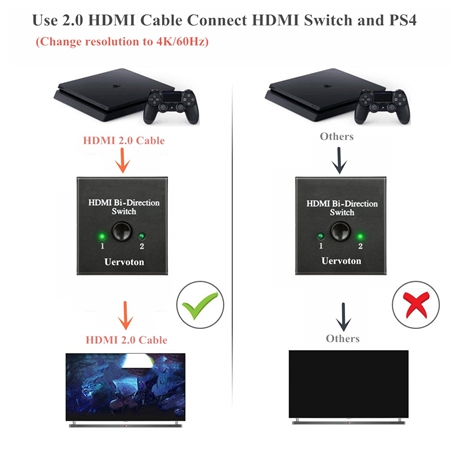

  1.  If your HDMI source device (like XBox, PS4) supports 4K, we recommend to use a HDMI cable 2.0 to connect 4K HDMI source device & HDMI switch & display, since HDMI cable 1.4 (or below HDMI 1.4) isn't enough to support the resolution of 4K (4096*2160).
  2.  If your HDMI cable is not HDMI cable 2.0, you could adjust the resolution on your 4K HDMI source device to 1080P (1920*1080) to match the specification of your HDMI cable, or use the proper HDMI cable to connect.

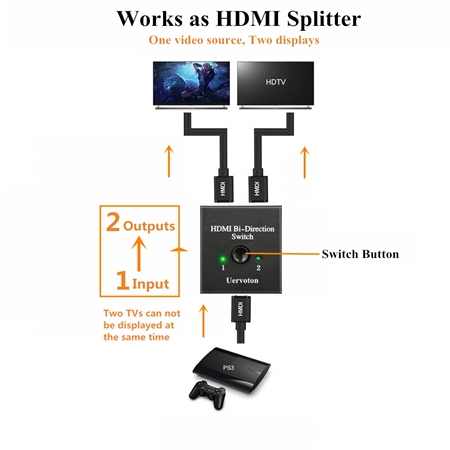

  3. HDMI switch box couldn't get 2 display devices to work simultaneously when you connect 1 HDMI-Host to 2 HDMI TV or monitor.

Features

  • Interface: HDMI 2.0
  • Input DDC Signal: 5V p-p (TTL)
  • Max operation current: 15mA
  • Vertical Frequency: 50/60Hz
  • Video Amplifier Bandwidth: 18Gbps/340MHz<
  • Support 3D
  • Support HDR below @50Hz
  • Support HDMI Plug & Play
  • Supported Resolutions: 480i/480p/576i/576p/720p/1080i/1080p/2K, 4K@60Hz
